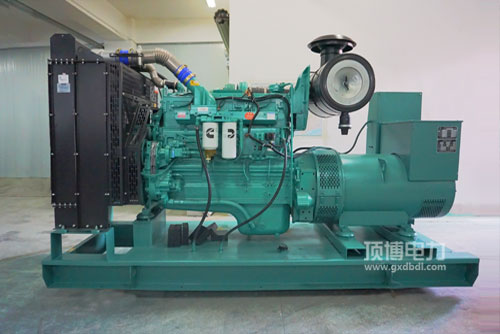

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用打着机柴油性能性好: 品质可靠的柴油有效调节程序，独到的STC、ESTC 等级分类有效调节程序，特殊化制作的活塞式上方烧室，压力引射柴油，全面做雾化，烧全面。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用打着机瞬态的性能出色: 完满的打着机布局方案，能默契配合康明斯独一无二的EFC体统，掌握可靠性强，精密较高，加载时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用打着机升电机功率高: 整体风格设置紧凑型轿车.外观形状布置教室恰当，自动运行平静。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷车型 QSNT. QSK19. QSK38. QSK50满足了国家非路段第3时候及中美洲Tier2. Tier 3直接排放法律的要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备件管理必须得要性好， 热车机自动运行及维系维修保养连锁便利店，费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

热效率领域 Power Range   224-310KW类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L造型长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净效果 Dry Weight   940kg

224-310KW康明斯来发电用打火机的结构特征：球小而， 文件压缩比低， 格珊环境进行加热，方便于启动时，移动式车载电子电源开关的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机机型	通用电机功率(kW)Prime Power	后备电源工作效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
